Photoelectric Direct Reading Valve Water Meter DC36V Digital Smart Water Meter LXSY Series；Accurate metering from micro to ultra-large flow rates, reducing metering blind spots

Large Image : Photoelectric Direct Reading Valve Water Meter DC36V Digital Smart Water Meter LXSY Series；Accurate metering from micro to ultra-large flow rates, reducing metering blind spots

Product Details:

Place of Origin:	China
Brand Name:	HUIYUE
Model Number:	LXSY-15~25FK

Payment & Shipping Terms:

Packaging Details:	Individually packaged, carton packaged; size can be adjusted according to actual needs.
Delivery Time:	1~2weeks
Payment Terms:	T/T、D/P、D/A
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Technology:	Smart Metering	Power Supply:	Battery Or External Power
Data Storage:	Internal Memory	Flow Rate Range:	0.01-1000m³/h
Type:	Water Meter	Data Transmission:	Real-time
Communication Protocol:	Wireless	Accuracy:	±0.5%
Measurement Method:	Ultrasonic	Compatibility:	Compatible With Smart Metering Systems
Highlight:	photoelectric direct reading water meter , DC36V digital smart water meter , Direct Reading Valve Water Meter DC36V

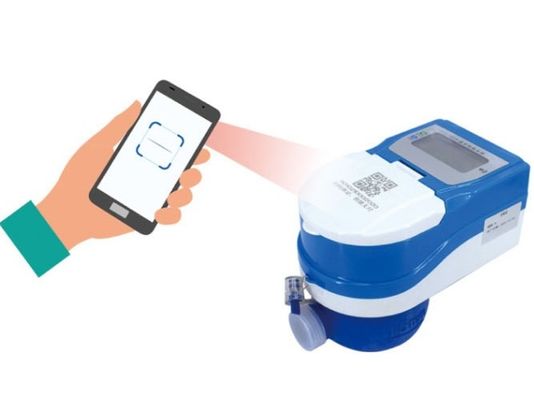

Photoelectric Direct Reading Valve-Controlled Water Meter FOR Scan code

Product Features

Rotary metering structure with high accuracy, small starting flow, attractive appearance, and easy reading
Low power consumption photoelectric coding passive direct reading technology
Built-in remote control valve for efficient operation

Technical Parameters

Parameter	Specification
Product model	LXSY-15 ~ 25FK
Working voltage	DC 36V
Working current	Meter Reading Current ≤9 mA Static operating current ≤1.3 mA Valve On/Off Bus Current ≤50 mA
Valve type	Electric ball valve
Valve On/Off motor valve input current	≤30 mA
Ambient temperature	0.1℃ ~ +55℃
Relative humidity	0 ~ 95% RH
Storage temperature	-25℃ ~ +65℃
Temperature rating	T30 (cold water) \| T90 (hot water)
Working pressure	1 MPa
Communication protocols	DL/T645, CJ/T 188, internal protocols, or user customization
Max communication distance	300m (Communication line specification AVVR2×0.75)
Accuracy rating	Class 2
Communication with host	M-bus
Bus fault protection	Yes (open circuit, short circuit, idle)
Single meter valve On/Off time	8s
Bus PIN ESD protection	over 10 kV
Short-circuit current protection	Yes
Pressure loss grade	∆p63

Flow Parameters

Model	Nominal diameter	Q3/Q1	Overload flow Q4	Normal flow Q3	Boundary flow Q2	Minimum flow Q1
LXS-15FK	DN15	160	3.125	2.500	0.050	0.025
LXS-20FK	DN20	160	5.000	4.000	0.080	0.040
LXS-25FK	DN25	160	7.875	6.300	0.128	0.063

NOTE: Maximum allowable error:
1. The maximum allowable error of high zone flow rate (Q2≤Q≤Q4) is ±2% when the water temperature range is 0.1℃~30℃. When the water temperature is higher than 30℃, the maximum allowable error is ±3%.
2. The low zone flow rate (Q1≤Q≤Q2) is ±5%, regardless of the water temperature range.
