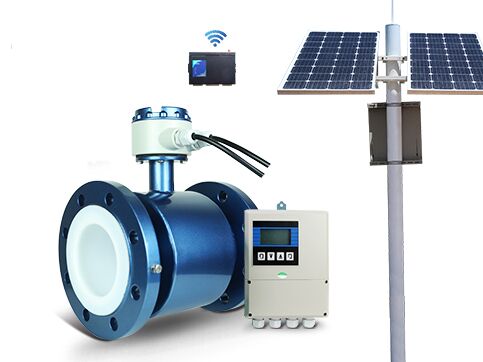

1. Product Overview

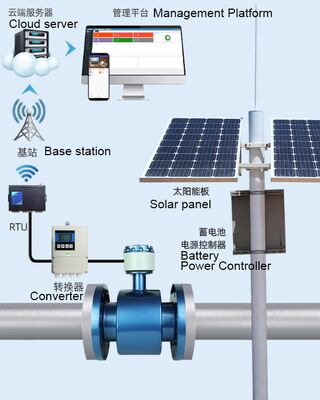

The solar-powered flow meter has been upgraded with an integrated equipment lithium battery (automatically charges in DC power supply mode can automatically switch to lithium battery for continuous operation for up to a month after power failure), with data storage and report output functions, and optional spare solar panels and wireless communication The solar-powered flow meter adopts multi-parameter measurement technology, replacing four instruments: differential pressure, pressure, flow, and totalizer, thus saving customers' purchasing and installation. The integrated flow meter uses full-parameter dynamic compensation technology to improve the accuracy and range of the instrument; full-range static pressure compensation technology to improve the accuracy of the or plate operation; and can be calibrated with the orifice plate integrated, with a calibration accuracy better than that of a separate instrument; specialization and integration in terms of functions; ifferent orifice plates can be selected according to needs (see the selection table - orifice plate type), and the corresponding technical parameters will also be slightly different. Please consult the for any unclear points.
2. Industry Applications
Solar-powered flow meters are used for the measurement of gases, liquids, and steam in industries such as petroleum chemical, power, pharmaceutical, food, paper-making, water treatment, metallurgy, cement, and glass.
3. Technical Parameters (dependent on the type of restriction)
1. [P] Orifice plate, nozzle, venturi, etc., standard restriction devices that do not require actual calibration
| Accuracy grade |
Different pressure:0.075% Pressure:0.25% Temperature:0.5℃ |
| Flow accuracy:0.5～2.5% |
| Applicable medium |
Suitable for the measurement of various gases, low-viscosity liquids, and steam |
| Pressure range |
Differential pressure:0～21MPa |
| Ambient temperature |
With LCD -20～70℃ Without LCD -40～85℃ |
| Pipe diameter |
DN50～DN300 |
| Range ratio |
≥8:1 |
| Power supply |
24VDC |
| Straight pipe section requirements |
5 in front and 2 behind (ult the factory if the straight pipe section is insufficient) |
| Material compatibility |
Stainless steel, Hastelloy, tantalum are optional |
| Case protection |
IP67 |
| Electromagnetic protection |
IEC61000-4-2-5 |
| Installation method |
Integral and separate are optional |
| Explosion-proof type |
Intrinsic and enclosure are optional |
| Calibration method |
Water or gas |
2.【M】V-shaped, wedge-shaped, etc., orifice plates requiring actual calibration
| Accuracy grade |
Different pressure:0.075% Pressure:0.25% Temperature:0.5℃ |
| Flow accuracy:0.3~0.5 |
| Applicable medium |
Liquid, steam, gas are all available |
| Pressure range |
0.65~21MPa (order according to the agreement if the is greater than this) |
| Ambient temperature |
With LCD -20～70℃ Without LCD -40～85℃ |
| Pipe diameter |
DN50～DN300 |
| Range ratio |
≥15:1 |
| Power supply |
24VDC |
| Sraight pipe section requirements |
3 in front and 1 behind (consult the factory if the straight pipe section is not enough) |
| Material compatibility |
316L stainless steel Hastelloy, tantalum are optional |
| Case protection |
IP67 |
| Electromagnetic protection |
IEC61000-4-2-5 |
| Explosion-proof type |
Integral and separate are optional |
| Explosion-proof type |
Intrinsic and enclosure are optional |
| Calibration method |
Water or gas |
3. 【B】Various insertion type Pitot tubes and probes
| Accuracy grade |
Different pressure:0.075% Pressure:0.25% Temperature:0.5℃ |
| Flow accuracy:0.5%~2% |
| Applicable medium |
Various gases, steam, and lowviscosity liquids can be measured |
| Pressure range |
0~21MPA |
| Ambient temperature |
With LCD -20～70℃ Without LCD -40～85℃ |
| Pipe diameter |
DN15～DN12000 (round pipe), side length 200~4000 (square) |
| Range ratio |
≥10:1 |
| Power supply |
24VDC |
| Sraight pipe section requirements |
Front 10, rear 3 (consult the if the straight pipe section is insufficient) |
| Material compatibility |
Stainless steel, Hastelloy, tantalum are optional |
| Case protection |
IP67 |
| Electromagnetic protection |
IEC61000-4-2-5 |
| Explosion-proof type |
Integral and separate are optional |
| Explosion-proof type |
Intrinsic and enclosure are optional |
