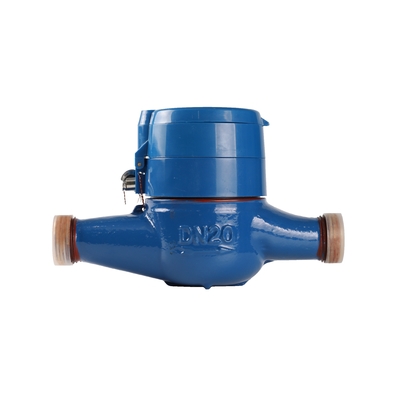

Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management

Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management
Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management

Large Image :  Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management

Product Details:
Place of Origin: China
Brand Name: HUIYUE
Model Number: LXSY-15 ~ 40E
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $30~$80usd
Packaging Details: Individually packaged, carton packaged; size can be adjusted according to actual needs.
Delivery Time: 1~2weeks
Payment Terms: T/T、D/P、D/A
Supply Ability: 10000
Contact Now Chat Now

Analog Display DN20 Water Meter Intelligent Water Meter 1.6MPa For Modern Water Management

Description
Warranty: 1 Year Installation Type: Horizontal
Accuracy: Class B Temperature Range: 0-40°C
Display Type: Analog Working Pressure: 1.6MPa
Reading Method: Mechanical Application: Residential/Commercial
Size: DN20 Pulse Output: No
Flow Rate: 1.5-15m³/h Connection Type: Threaded
Material: Brass
Highlight:

Analog Display DN20 Water Meter

,

Analog Display Intelligent Water Meter

,

Intelligent Water Meter 1.6MPa

Photoelectric Direct Reading Remote Smart Water Meter (DN15~DN40)

Precision intelligence solution for modern water management with photoelectric direct reading technology, designed for residential and commercial applications.

Key Attributes
Attribute Value
Warranty 1 Year
Installation Type Horizontal
Accuracy Class B
Temperature Range 0-40°C
Working Pressure 1.6MPa
Size DN20
Flow Rate 1.5-15m³/h
Material Brass
Advanced Features
  • Photoelectric direct reading sensors for accurate measurement
  • Compatible with smart home systems for seamless integration
  • Wireless connectivity for remote monitoring
  • Easy installation process with threaded connection
  • Detailed water usage analysis capabilities
  • Customizable alerts and notifications
  • Cloud-based data storage for historical tracking
Technical Specifications
Parameter Value
Working Voltage M-BUS: DC 36V | RS-485: DC 12V
Working Current M-BUS: ≤10.0mA (reading), ≤1.5mA (static)
RS-485: ≤5.0mA (reading), ≤1.0mA (static)
Ambient Temperature 0.1℃ ~ +55℃
Relative Humidity 0 ~ 95% RH
Working Pressure 1 MPa
Communication Protocols DL/T645, CJ/T 188, internal protocols, or user customization
Accuracy Rating Class 2
Flow Parameters
Model Nominal Diameter Overload Flow Q4 Normal Flow Q3 Boundary Flow Q2 Minimum Flow Q1
LXSY-15E DN15 3.125 2.500 0.050 0.025
LXSY-20E DN20 5.000 4.000 0.080 0.040
LXSY-25E DN25 7.875 6.300 0.128 0.063
LXSY-32E DN32 12.500 10.000 0.200 0.125
LXSY-40E DN40 20.000 16.000 0.320 0.200
Accuracy Notes

1. High zone flow rate (Q2≤Q≤Q4) maximum allowable error: ±2% (0.1℃~30℃), ±3% (>30℃)

2. Low zone flow rate (Q1≤Q≤Q2) maximum allowable error: ±5% (all temperatures)

Product Certifications

Complies with GB/T 778.1~5-2018 standards and CJ/T 224-2012 "Electronic Remote Water Meter" standard. Meets electromagnetic compatibility requirements (EMC, ESD, EMI).

Frequently Asked Questions
What is the brand name of the Smart Water Meters?

HUIYUE Smart Water Meters

What is the model number?

LXS-15~40E series

What certifications does the product have?

GB/T 778.1~5-2018 standards with Class 2 accuracy certification

What is the minimum order quantity?

100 units
