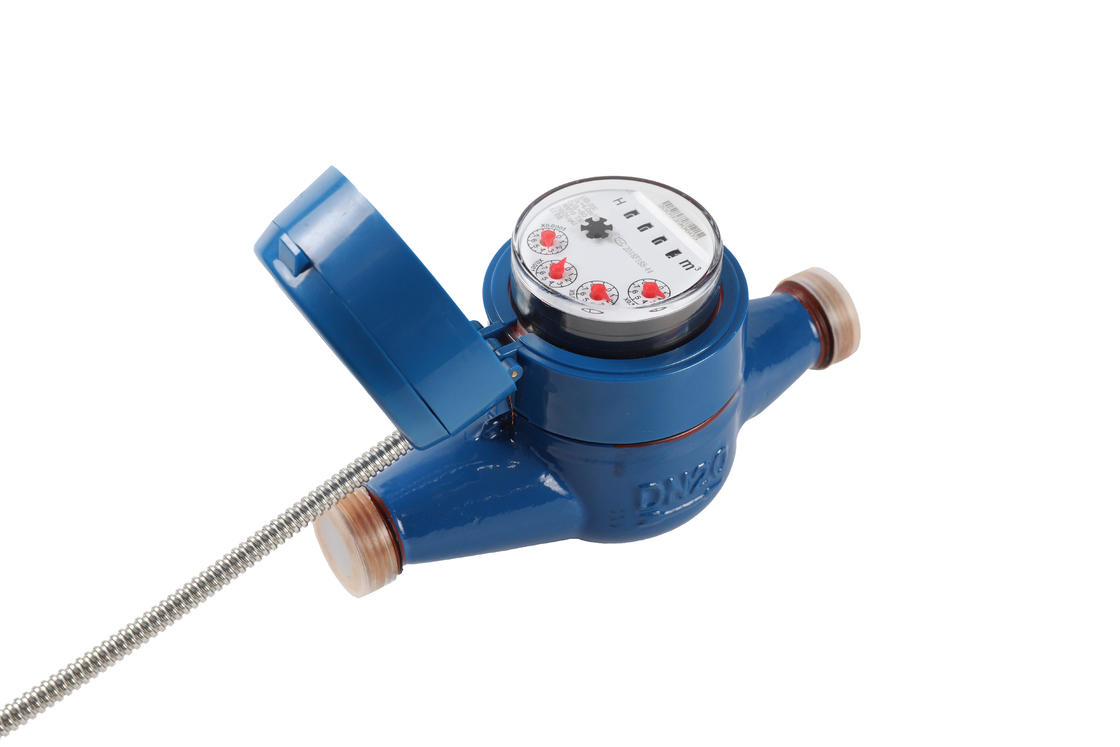

Photoelectric Direct Reading DN15 Water Meter Remote Water Meter Small Diameter

Photoelectric Direct Reading DN15 Water Meter Remote Water Meter Small Diameter
Photoelectric Direct Reading DN15 Water Meter Remote Water Meter Small Diameter

Large Image :  Photoelectric Direct Reading DN15 Water Meter Remote Water Meter Small Diameter

Product Details:
Place of Origin: China
Brand Name: HUIYUE
Model Number: LXS-15~40E
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $30~$80usd
Packaging Details: Individually packaged, carton packaged; size can be adjusted according to actual needs.
Delivery Time: 1~2weeks
Payment Terms: T/T、D/P、D/A
Supply Ability: 10000
Contact Now Chat Now

Photoelectric Direct Reading DN15 Water Meter Remote Water Meter Small Diameter

Description
Reading Method: Mechanical Max Reading: 99999m³
Size: DN15 Material: Brass
Accuracy: Class B Temperature Range: 0-50℃
Manufacturer: DN15 Water Meters Co., Ltd. Connection Type: Threaded
Warranty: 1 Year Flow Rate: 0.03-1.5m³/h
Application: Residential And Commercial Water Measurement Working Pressure: 1.6MPa
Installation Type: Horizontal Display Type: Analog
Highlight:

Direct Reading DN15 Water Meter

,

Photoelectric DN15 Water Meter

,

Remote Water Meter Small Diameter

Photoelectric Direct Reading Remote Smart Water Meter (Small Diameter, DN15~DN40)
Precision Intelligence for Modern Water Management
Product Attributes
Attribute Value
Reading Method Mechanical
Max Reading 99999m³
Size DN15
Material Brass
Accuracy Class B
Temperature Range 0-50℃
Manufacturer DN15 Water Meters Co., Ltd.
Connection Type Threaded
Warranty 1 Year
Flow Rate 0.03-1.5m³/h
Application Residential and Commercial Water Measurement
Working Pressure 1.6MPa
Installation Type Horizontal
Display Type Analog
Product Description

The Smart Water Meters are cutting-edge high-tech flow rate detectors that offer unparalleled insight into water usage patterns. With their intelligent water flow monitors, these meters provide detailed usage analysis, making them an essential tool for individuals and businesses looking to monitor and manage their water consumption effectively.

One of the key features of the Smart Water Meters is their easy installation process. Designed with user convenience in mind, these meters can be set up quickly and effortlessly, ensuring that users can start benefiting from their advanced capabilities without any hassle.

When it comes to accuracy, the Smart Water Meters excel with their high precision measurements. Users can rely on the data provided by these meters to make informed decisions about their water usage, leading to more efficient consumption practices and potential cost savings.

Remote control is another standout feature of the Smart Water Meters. Through IoT water metering systems, users can access real-time data and control functions from anywhere, providing them with unprecedented convenience and flexibility in managing their water usage.

Customizable alerts and notifications further enhance the user experience with the Smart Water Meters. Users can set up personalized alerts based on their specific needs and preferences, ensuring that they stay informed about their water usage and any potential issues that may arise.

Key Features
  • Photoelectric Direct Reading sensors
  • Compatible with Smart Home Systems
  • Wireless connectivity
  • Easy installation
  • Detailed usage analysis
  • High accuracy measurements
  • Remote monitoring capabilities
  • Customizable alerts and notifications
Technical Specifications
Parameter Value
Product model LXSY-15 ~ 40E
Working voltage M-BUS: DC 36V | RS-485: DC 12V
Working current M-BUS: Meter Reading Current≤10.0mA, Static operating current≤1.5 mA
RS-485: Meter Reading Current≤5.0mA, Static working current≤1.0mA
Ambient temperature 0.1℃ ~ +55℃
Relative humidity 0 ~ 95% RH
Temperature rating T30 (cold water) | T90 (hot water)
Working pressure 1 MPa
Pressure loss grade ∆p63
Communication with host M-bus, RS-485 bus
Communication rate 1200/2400/4800/9600bps
Communication protocols DL/T645, CJ/T 188, internal protocols, or user customization
Max communication distance 300m
Accuracy rating Class 2
Flow Parameters
Model Nominal Diameter Overload Flow Q4 Normal Flow Q3 Boundary Flow Q2 Minimum Flow Q1
LXSY-15E DN15 3.125 2.500 0.050 0.025
LXSY-20E DN20 5.000 4.000 0.080 0.040
LXSY-25E DN25 7.875 6.300 0.128 0.063
LXSY-32E DN32 12.500 10.000 0.200 0.125
LXSY-40E DN40 20.000 16.000 0.320 0.200
Product Features
  • Zero reading error
  • Low power consumption and low failure rate
  • Highly reliable data encoding and verification technology
  • Rotor-type metering structure with high accuracy
  • Complies with "Electronic Remote Water Meter" standard (CJ/T 224-2012)
  • Flow performance complies with GB/T 778.1~5-2018 standards (Class 2 accuracy)
  • Multiple communication protocol compatibility
  • EMC, ESD, EMI compliant electromagnetic compatibility
  • Remote automatic meter reading system integration
Frequently Asked Questions
Q: What is the brand name of the Smart Water Meters?
A: The brand name of the Smart Water Meters is HUIYUE
Q: What is the model number of the Smart Water Meters?
A: The model number of the Smart Water Meters is LXS-15~40E.
Q: Where is the Smart Water Meters manufactured?
A: The Smart Water Meters are manufactured in China.
Q: Does the Smart Water Meters come with certification?
A: Yes, the Smart Water Meters come with GB/T 778.1~5-2018 standards, and the accuracy level is Class 2 certification.
Q: What is the minimum order quantity for the Smart Water Meters?
A: The minimum order quantity for the Smart Water Meters is 100.
Maximum allowable error:
1. The maximum allowable error of high zone flow rate (Q2≤Q≤Q4) is ±2% when the water temperature range is 0.1℃~30℃. When the water temperature is higher than 30℃, the maximum allowable error is ±3%.
2. The low zone flow rate (Q1≤Q≤Q2) is ±5%, regardless of the water temperature range.
