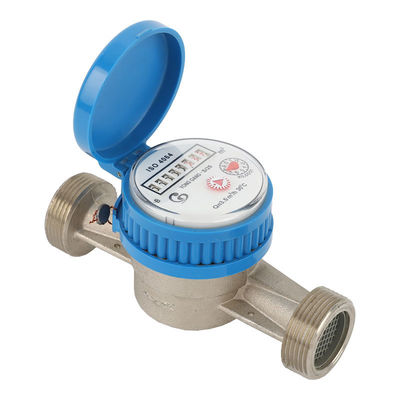

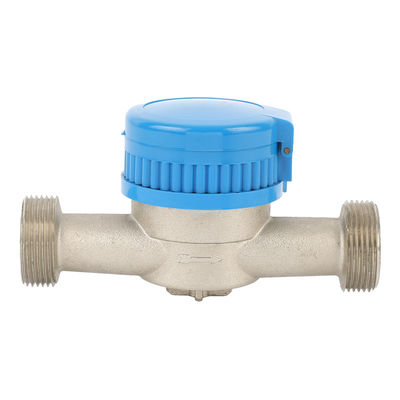

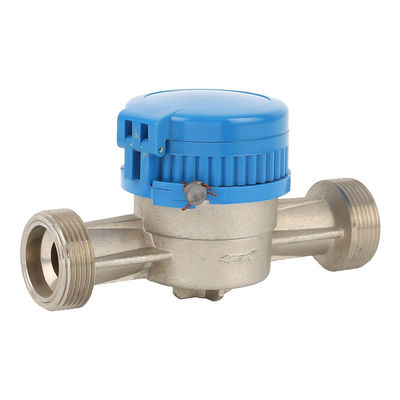

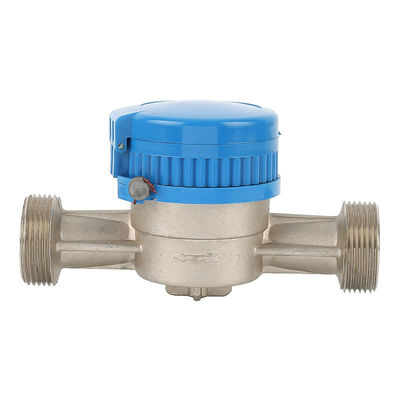

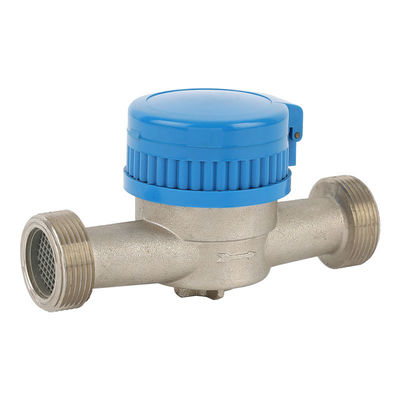

Main features
●Single jet, dry disc, magnetic drive, anti-magnetic or non-magnetic.
●Suitable for cold (30°C) and hot water (90°C), sizes Ø 15 to 25 mm (1/" – 1").
●Body material: brass, nickel-plated
●Measurement accuracy in accordance with ISO 4064 class B standard Internal adjustment device
Main technical parameters
Gauge sizeDia
DN
(mm) |
Type |
Qs
Overload flow |
Qp
Rated flow |
Qt
Transition flow |
Qminimum flow |
Minimum pulse quantity |
Maximum pulse quantity |
| m3/h |
1/h |
m3 |
| 13 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99999 |
| B |
120 |
30 |
| 20 |
A |
5 |
2.5 |
250 |
100 |
0.0001 |
99999 |
| B |
200 |
50 |
| 25 |
A |
7 |
3.5 |
350 |
140 |
0.0001 |
99999 |
| B |
280 |
70 |
Working conditions
Cold water meter water temperature: ≤50°C
Water temperature: ≤90°C hot water meter
Working pressure ≤1.0 MPa
The flow resistance advantage compared to volumetric water meters - smaller head loss, energy saving and consumption reduction.
The initial investment advantage compared to smart water meters - the lowest initial cost in scenarios where remote functionality is not required.
Highly mature technology - tested by the market, it is one of the classic mechanical water meter technologies.
No need for external energy - relying on natural water flow to drive, green and environmentally friendly.
