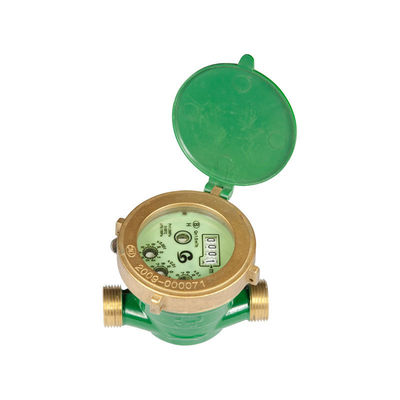

Single jet series water meter LXS-13D Main features
●Single nozzle, wet dial.
●Size Ø15, for cold water (50°C)
●Body material: brass. Powder coated surface
●Measuring accuracy in accordance with ISO 4064 class standard
Main technical data
Instrument size
Dia
DN
(mm) |
Ttpe |
qs
Overload flow |
qs
Rated flow |
qs
Transition flow |
Qminimum flow |
Minimum pulse quantum |
Maximum pulse quantum |
| m3/h |
1/h |
m3 |
| 13 |
A |
3 |
1.5 |
150 |
60 |
0.001 |
99999 |
| B |
120 |
30 |
| 15 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99999 |
| B |
120 |
30 |
| 20 |
A |
5 |
2.5 |
250 |
100 |
0.0001 |
99999 |
| B |
200 |
50 |
| 25 |
A |
7 |
3.5 |
350 |
140 |
0.0001 |
99999 |
| B |
280 |
70 |
| 32 |
A |
12 |
6.0 |
600 |
240 |
0.001 |
99999 |
| B |
480 |
120 |
| 40 |
A |
20 |
10 |
1000 |
400 |
0.001 |
99999 |
| B |
800 |
200 |
| 50 |
A |
30 |
15 |
4500 |
1200 |
0.001 |
99999 |
| B |
3000 |
450 |
Working conditions
Water temperature: cold water meter ≤ 50°C
Working pressure: ≤1.6Mpa
indicating error
in the low zone, from the minimum flow rate (qmin) to the transitional flow rate (qt) within ±5% exclusive boundaryin the high zone, from the transitional flow (qt) to the overloaded flow (qs) transitional flow (qs) within ±2%
The flow resistance advantage compared to volumetric water meters - smaller head loss, energy saving and consumption reduction.
The initial investment advantage compared to smart water meters - the lowest initial cost in scenarios where remote functionality is not required.
Highly mature technology - tested by the market, it is one of the classic mechanical water meter technologies.
No need for external energy - relying on natural water flow to drive, green and environmentally friendly.
