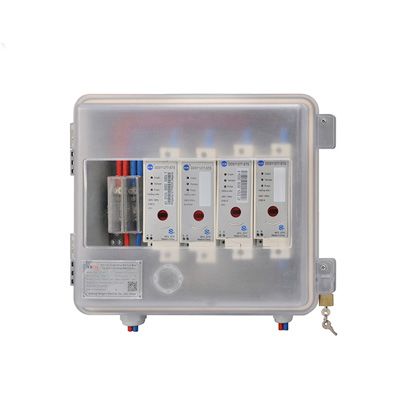

Product Summary:
The Single-phase split-type (track) electricity meter low-voltage metering box is a robust and versatile single-phase, split-type metering box designed for secure and reliable electricity measurement in low-voltage applications. Its innovative split-type (track/rail-mounted) design allows for easy installation and maintenance of the internal meter. Built with a high IP54 rating for weather resistance, it is perfectly suited for both outdoor and indoor environments, providing superior protection for your metering equipment.
Technical Specifications:
Parameter Value / Description
Model YXD-DF1802
Type Single-Phase Split-Type (Rail-Mounted) Low-Voltage Metering Box
Installation Outdoor & Indoor
Rated Insulation Voltage (Ui) 230V
Rated Current (In) 40A / 60A / 80A
Rated Frequency 50Hz
Impulse Withstand Voltage 2.5kV (2500V)
Degree of Protection IP54 (Enclosure) / IP2X (Operating Surface)
Power Frequency Withstand Voltage 2000V / 1min
Material High-Quality Engineering Plastic (or PC+ABS, specify if known)
Dimensions (L x W x H) 362mm × 298mm × 132mm
Mounting Standard DIN-Rail (35mm)
Target Applications & Use Cases
This metering box is ideal for a wide range of low-voltage metering scenarios, including:
· Residential Electricity Metering
· Commercial Complexes and Shop Houses
· Apartment Buildings and Condominiums
· Industrial Workshops and Small Factories
· Telecommunication Base Stations
· Renewable Energy Systems (e.g., Solar PV metering)
