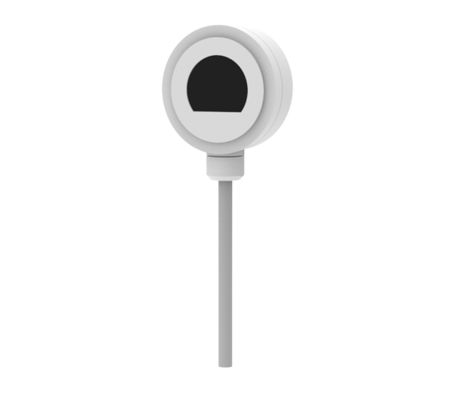

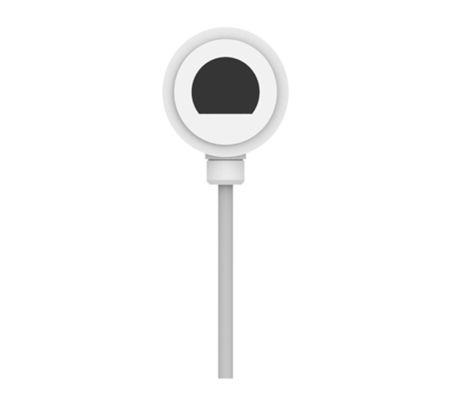

The infrared meter reading device is based on 38kHz signal modulation and demodulation, realizing the mutual conversion of infrared signals and RS485, and supporting the protocol conversion of DLT645-2007/DLT645-1997 standard meter protocols. It is suitable for monitoring, energy management system monitoring, ensuring that the data is consistent with the meter reading, and it can be used with the rail data collector to upload the monitoring data to the Whe Photovoltaic platform, and display it in a clear and intuitive form in the form of charts.
Product features
Accuracy Support reading electricity data from the infrared port of the State Grid meter Support reading positive and negative electricity, time-sharing, active electricity and reactive electricity Maintain a high degree of consistency with the electricity reading of the State Grid meter Reliability Industrial grade component selection, meeting the working environment of -25℃～ 85℃ Strong anti-interference ability, one-to-one reading with the meter, no misreading, mixed and other situations that cause data anomalies Convenience Plug and play, installation can be completed in 15 minutes, to achieve remote meter reading One collector connects one infrared reading device Realize the reading of the electricity meter on the generation side or the electricity meter on the grid side under the scenario of self-generation and self-consumption chnical parameters
Technical parameters
| Product Model |
IR-22-D |
| Hardware Parameters |
Data Interface RS485(default configuration 9600bps parity) |
| Working Voltage |
DC5V /-10% |
| Working Power |
0.15W |
| Working Temperature |
-25℃~ 5℃ |
| Working Humidity |
10%~90% relative humidity, no condensation |
| Storage Temperature |
-25℃~ 85℃ |
| Humidity |
<40% |
| Appearance Size |
Round, diameter 40mm, thickness 23mm |
| External Interface |
RJ4 (RS485) |
| Transmission Line Distance |
Standard 2 meters, standard extension connector, support maximum 15 meters extended network cable (super five shielded |
| Number of Meters Connected |
1 |
| Infrared Connection Indicator |
1 |
| Software Parameters Modulated |
Signal Frequency 38K |
Compared with GPRS meter reading - no communication fees, not limited by signal coverage.
Compared with PLC power line carrier, it is not affected by grid noise interference and can be read immediately.
Compared with pulse acquisition - there is no cumulative error, and the data is completely consistent with the dial.
Extremely high reliability - mature technology, capable of stable operation in various environments.
No operating costs - one-time purchase, long-term use, no subsequent communication expenses.
The fastest deployment speed - it can be opened and put into use without any engineering required.
The lowest operating threshold - no professional IT knowledge is required, ordinary meter readers can operate it.
High data authority - directly reading the core data of the meter, with strong legal effect.
